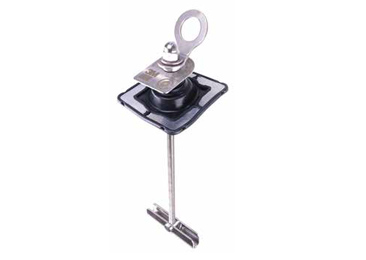

3M 2101735 Abseil Anchor Point

A C or Z section steel purlin mounted roof anchor that is ideal for both residential and commercial applications.

PBI_Logo_Asset_45_x_75_px-1

Specs & Details

  • Key features
  • Technical Information

The 210735 anchor provides an economical solution for fall protection during the initial construction stage as well as future roof access and maintenance. All of the 210735 anchor components are manufactured from 316-grade stainless steel and are able to sustain a load of up to 15kN for single-person use.

HOW IT IS USED

3M 2101735 anchor is designed to be installed on building roofs. The anchors provide fall protection and abseil for operatives doing a range of activities including roof wash downs, installing & maintaining HVAC air conditioning units, general maintenance, or gutter cleaning. The anchors are designed to support and hold a person in the event of a fall and support a person for abseil access.

HOW IT WORKS

A large anchorage eye makes connection quick and easy for the user. Load distributing design protects the roof and user.

PERFORMANCE

Conforms to AS/NZS 1891.4:2009 - Industrial fall-arrest systems and devices - Selection, use, and maintenance, designed for and tested on most roof types, has been designed to withstand a 15kN load. All anchors are certified to the requirements of AS/NZS 5532 as a single-person fall arrest anchor point able to sustain a force of 15kN.



INSTALLATION

Installation must be carried out by an accredited 3M Fall Protection Certified Technician and in accordance with the manufacturer's installation instructions for surface-mounted systems. Can be installed during roof construction or as a retrofit from the top of the roof surface.

MAINTENANCE

As per AS/NZS 1891.4, the 210735 must be certified every 12 months by an Accredited 3M Fall Protection Certification technician. All of the exposed materials in the system have been specified as naturally corrosion-resistant, or have been coated with sacrificial coatings to prevent oxidization of the base material. It is important to consider that in some environments the system may need to be cleaned to gain the best possible life expectancy from the materials.

WARRANTY

3M warrants the 210735 and its component parts against factory defects in workmanship and materials for 10 years from its date of original purchase from 3M. Conditions that must be fulfilled include the system must be installed in accordance with 3M's installation instructions. The system is inspected in accordance with 3M's inspection instructions and annually recertified by a certified installer. Fixings must be tested at installation and then at least once a year and recorded in accordance with 3M's installation instructions. The system must be owned by the person making the warranty claim. The system has been properly used and maintained in accordance with its user instruction manual.
