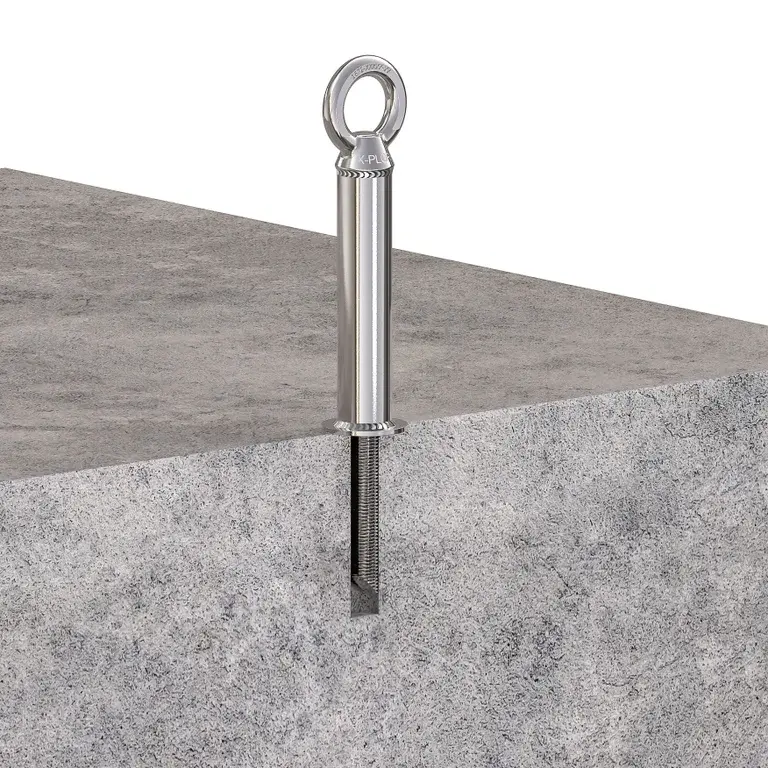

Kattsafe AP118 Concrete Mount Anchor

The Kattsafe AP118 Concrete Raised Concrete Mount Anchor is suitable for fall arrest and rope use on ballast/aggregate roofs.
PBI_Logo_Asset_45_x_75_px-1

Specs & Details

  • Key features
  • Technical Information
  • Fall arrest/rope access use
  • 15kN rated (fall arrest) / 12kN rated (rope access)
  • Can provide rope access when used in pairs
  • Weight range: 0.6 to 0.9kg



WEIGHT

  • AP118.050: 0.6kg
  • AP118.150: 0.7kg
  • AP118.200: 0.9kg



COMPLIANCE

The AP118 raised concrete mount anchor is designed and manufactured in accordance with requirements of Australian

and New Zealand Standards AS/NZS 1891.4:2009, AS/NZS ISO 22846 and AS/NZS 5532:2013.



TESTING

Testing and performance based on AS/NZS 1891.4:2009

  • Dynamic load test 15kN
  • Static load test – 15kN

Requires proof load test.

INSPECTION AND MAINTENANCE

Inspection and certification required every 12 months by competent person in accordance with manufacturer’s specifications and requirements of Australian and New Zealand Standards AS/NZS ISO 22846 and AS/NZS 1891.4:2009 Section 9 (refer installation manual). Rope access use: tensile load test to 6.0kN Fall arrest use: tensile load test to 7.5kN

WARRANTY

10 Years from date of purchase subject to correct installation. Use and maintenance to be in accordance with manufacturer’s specifications and recommendations

WARRANTTY TERMS AND CONDITIONS

All warranty claims must be made in writing within 14 days of the appearance of the defect. Incorrect installation or work done by a non accredited Alta Safety system installer will void all warranty rights. Systems that have been installed using non proprietary equipment will void all warranties.

System roof/cladding and concrete penetration seals are not covered in this warranty.

Systems/components that have not been maintained in accordance with manufacturer’s/legislative requirements will void warranty. Systems used by incompetent persons or use with non compatible accessories ie. harness gear, lanyards, travellers, fall arrestors etc. will void warranty. Systems/components used for purposes other than their intended use will void warranty. General wear and tear is expected and will depend on the frequency of use and is not covered by warranty.

PBI_Logo_Asset_45_x_75_px-1

Projects

Specific to product

Thermosash Project | Alta Safety

Thermosash Project | Alta Safety

Architect: Create Architects and Engineers

Contractor: Thermosash

Location: Levin, New Zealand


  • Solution

    3M Cable Fall Arrest System

  • Scope Requirements

    Fall Arrest

Te Kura Whakatipu O Kawarau

Te Kura Whakatipu O Kawarau

Architect: Stephenson & Turner Architects

Contractor: Southbase Construction

Location: Queenstown, New Zealand


  • Solution

    3M Roofsafe Surface Mounted Cable Static Line

  • Scope Requirements

    Fall Arrest

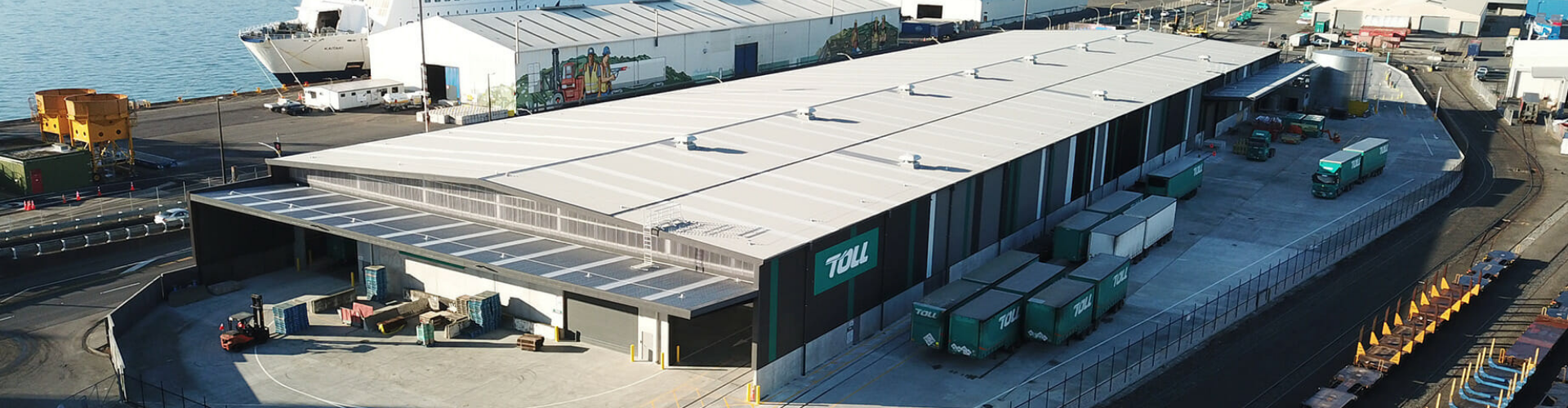

Toll New Zealand
