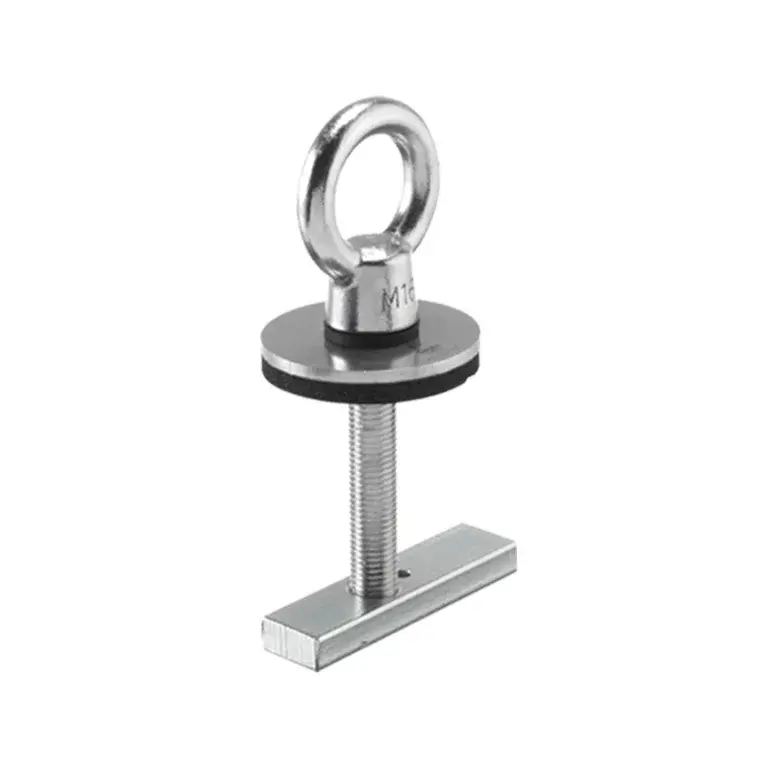

Kattsafe AP123 Purlin Mount Anchor

DIMENSIONS

• Total height: 165mm
• Eyebolt diameter: 60mm OD, 35mm ID
• Threaded rod: 100mm

• Flange: 70mm

SUBSTRUCTURE REQUIREMENTS

• Minimum purlin size: 150 x 1.5mm
• Minimum roof deck thickness: 0.42mm
• A minimum of three purlins connected to the roof deck Clip-fix roofs with less than 5 purlins require additional

COMPLIANCE
The AP123 purlin mount anchor is designed and manufactured to conform to requirements of Australian and New Zealand standard AS/NZS 5532:2013, AS/NZS 1891.4:2009 and relevant statutory WHS Codes of Practice/Guidelines.

INSPECTION AND MAINTENANCE
Inspection and certification required every 12 months by competent person in accordance with manufacturer’s specifications and requirements of Australian and New Zealand Standard AS/NZS 1891.4:2009 (refer installation manual).

PRODUCT WARRANTY
10 years from the date of purchase subject to correct installation. Use and maintenance to be in accordance with manufacturer's specifications and recommendations. (This excludes wearing parts).

WARRANTY TERMS AND CONDITIONS
All warranty claims must be made in writing within 14 days of the appearance of the defect.

Incorrect installation or work done by a non accredited Kattsafe system installer will void all warranty rights.

Systems that have been installed using non proprietary equipment will void all warranties.

System roof/cladding and concrete penetration seals are not covered in this warranty.

Systems/components that have not been maintained in accordance with manufacturer’s/legislative requirements will void warranty.

Systems used by incompetent persons or use with non compatible accessories ie. harness gear, lanyards, travellers, fall arrestors etc. will void warranty.

Systems/components used for purposes other than their intended use will void warranty. General wear and tear is expected and will depend on the frequency of use and is not covered by warranty.
