Kattsafe AP129 Concrete Cast-In Anchor

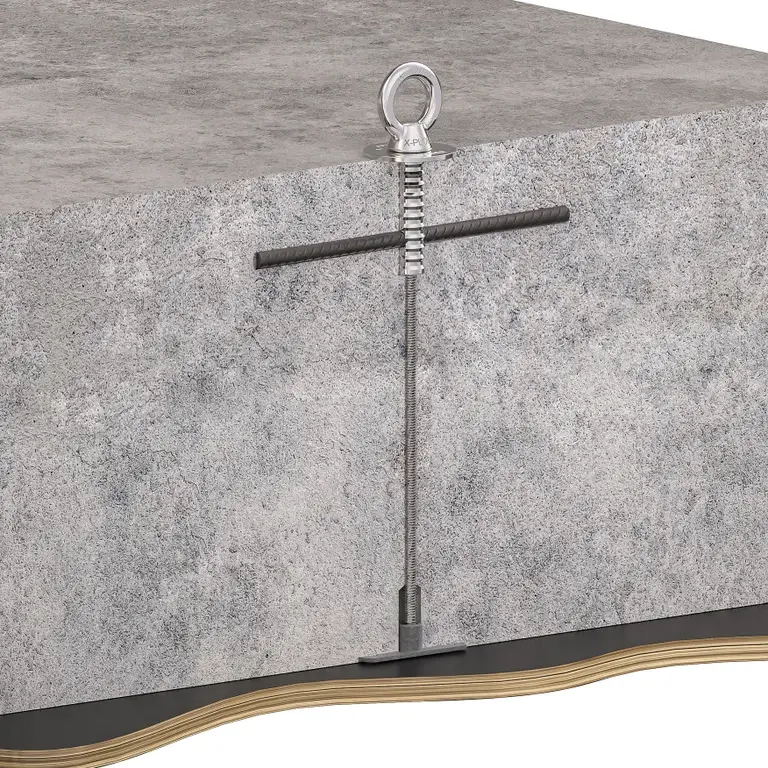

The Kattsafe AP129 concrete cast-in anchor is designed for fall arrest or twin rope access use, in direct tension or re-belay applications.
PBI_Logo_Asset_45_x_75_px-1

Specs & Details

  • Key features
  • Technical Information

The Kattsafe AP129 concrete cast-in anchor is designed for fall arrest or twin rope access use, in direct tension or re-belay applications.

The AP129 concrete cast-in anchor is a high strength solution for fall arrest and rope access needs. Able to be floor or ceiling mounted, the anchor can suit any cast-in situation. The anchor can be used in direct tension and for re-belay applications.

FEATURES AND BENEFITS

  • Fall arrest or twin rope access use
  • 15kN rated (fall arrest)
  • 12kN rated (rope access)
  • AP129V includes threaded rod, plastic nailing plate, reo bar & data label

DIMENSIONS

  • Eyebolt: M16 x 35mm
  • Eyelet: 60mm diameter
  • Concrete insert: 90 x 24mm

SUBSTRUCTURE REQUIREMENTS

  • Minimum concrete thickness: 150mm
  • Minimum concrete strength: 32mPa
  • Minimum anchor spacing: 250mm
  • Minimum concrete edge distance: 200mm

COMPLIANCE

AP129 Concrete cast-in anchors are designed and manufactured in accordance with requirements of Australian and New Zealand Standard AS/NZS 1891.4:2009, and relevant statutory WHS Codes of Practice/Guidelines.

TESTING

Testing and performance based on requirements of Australian and New Zealand Standards AS/NZS1891.4:2009, AS/NZS ISO 22846 and AS/NZS5532.2013.

INSPECTION AND MAINTENANCE

Visual inspection for any damage, ferrule movement or loose eyebolt must be done prior to use. Inspection by a Height Safety Equipment Inspector in accordance with manufacturer’s specifications and requirements of Australian and New Zealand Standard AS/NZS1891.4:2009 Section 9 (refere installation manual).

WARRANTY

10 years from the date of purchase subject to correct installation. Use and maintenance to be in accordance with manufacturer's specifications and recommendations.

WARRANTY TERMS AND CONDITIONS

All warranty claims must be made in writing within 14 days of the appearance of the defect.

Incorrect installation or work done by a non accredited Alta Safety system installer will void all warranty rights.

Systems that have been installed using non proprietary equipment will void all warranties.

System roof/cladding and concrete penetration seals are not covered in this warranty.

Systems/components that have not been maintained in accordance with manufacturer’s/legislative requirements will void warranty.

Systems used by incompetent persons or use with non compatible accessories ie. harness gear, lanyards, travellers, fall arrestors etc. will void warranty.

Systems/components used for purposes other than their intended use will void warranty. General wear and tear is expected and will depend on the frequency of use and is not covered by warranty.
