Kattsafe AP135 Rapid Top Mount Anchor

The Kattsafe rapid top mount anchor is a proprietary fall arrest anchor with unique energy absorbing abilities designed for simple installation.
PBI_Logo_Asset_45_x_75_px-1

Specs & Details

  • Key features
  • Technical Information

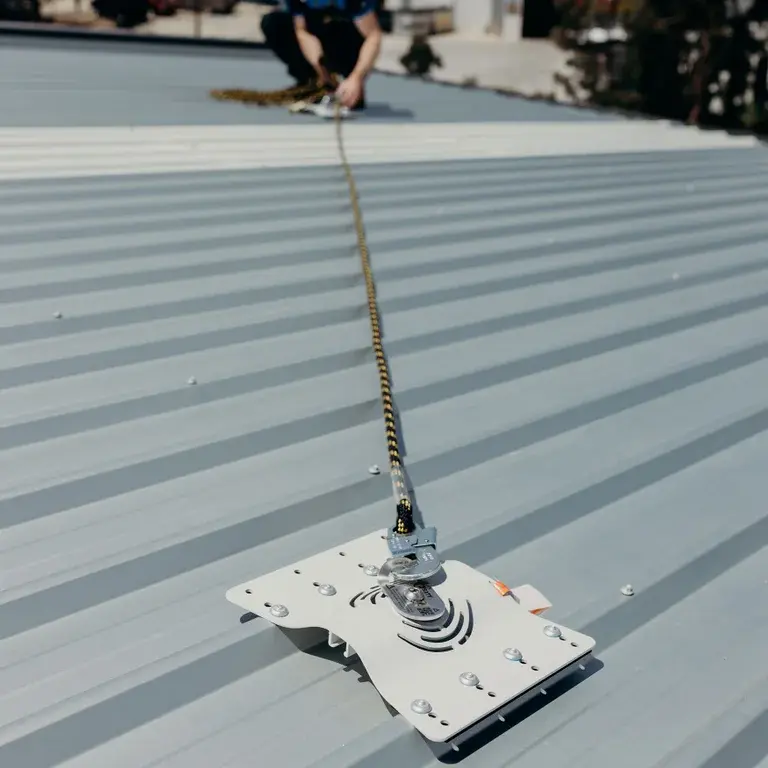

The AP135 top mount anchor is designed for a simple, rapid installation, the rapid top mount anchor provides effective fall protection when working at heights. The anchor is designed to be installed with rivets only and connected to 2 roof sheets for added strength.

  • Fall arrest use

  • Rated to 15kN

  • Allows connection to 2 roof sheets, increasing anchor redundancy

  • Maximum energy absorbing ability

  • Rope access rescue ability from activated anchor

  • Powder coated finish for dissimilar metal protection

  • Weight: .8kg (including fixings)

COMPLIANCE
The rapid top mount anchor is designed to conform with requirements of the Australian and New Zealand Standards AS/NZS 5532:2013 AS/NZS/ISO22846, AS/NZS1891 and relevant codes of practices and guidelines.

TESTING
Testing and performance based on requirements of Australian and New Zealand Standards AS/NZS 1891 and AS/NZS 5532.

  • Dynamic load test in line with roof fall and 90° to roof fall - 15kN
  • Static load test in line with roof fall and 90° to roof fall - 15kN

INSTALLATION
Installation must be carried out by an accredited Kattsafe Fall Protection Certified Technician, and in accordance with the manufacturer's installation instructions. Can be installed during roof construction or as a retrofit from the top of the roof surface.

MAINTENANCE
Inspection and certification required every 12 months by competent person in accordance with manufacturer’s specifications and requirements of Australian and New Zealand Standards AS/NZS 1891 and AS/NZS 5532 (refer installation manual).

WARRANTY
10 Years from date of purchase subject to correct installation. Use and maintenance to be in accordance with manufacturer’s specifications and recommendations. (This excludes wearing parts).

WARRANTY TERMS AND CONDITIONS
All warranty claims must be made in writing within 14 days of the appearance of the defect.

Incorrect installation or work done by a non accredited Kattsafe system installer will void all warranty rights.

Systems that have been installed using non proprietary equipment will void all warranties.

System roof/cladding and concrete penetration seals are not covered in this warranty.

Systems/components that have not been maintained in accordance with manufacturer’s/legislative requirements will void warranty.

Systems used by incompetent persons or use with non compatible accessories ie. harness gear, lanyards, travellers, fall arrestors etc. will void warranty.

Systems/components used for purposes other than their intended use will void warranty.

General wear and tear is expected and will depend on the frequency of use and is not covered by warranty
