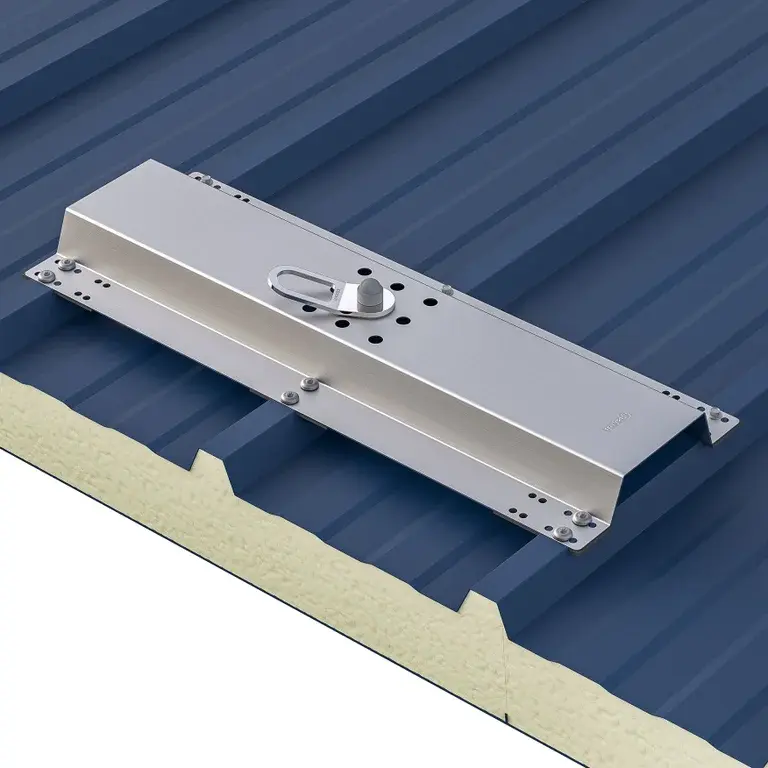

Kattsafe AP141 Top Mount Rope Access Anchor

The AP141 top mount rope access anchor is designed for fast installation and ultimate strength. Installed in pairs for use as a primary rope access connection always use with a backup/rescue anchor.

PBI_Logo_Asset_45_x_75_px-1

Specs & Details

  • Key features
  • Technical Information

The AP141 top mount rope access anchor is designed for fast installation and ultimate strength. Installed in pairs for use as a primary rope access connection always use with a backup/rescue anchor.

  • Fall arrest/rope access use
  • 15kN rated (fall arrest)/12kN rated (rope access)
  • Swivel eyelet with load-absorbing design eliminates snap-hook roll-out
  • Easy installation
  • Also available in a wide deck configuration
  • Weight: 2.8kg

COMPLIANCE

The AP141 Top mount rope access anchor is designed and manufactured to conform to requirements of Australian and New Zealand Standard AS/NZS 5532:2013, AS/NZS ISO 22846, AS/NZS 1891.4:2009 and relevant statutory WHS Codes of Practice/Guidelines.

TESTING

Testing and performance based on requirements of Australian and New Zealand Standard AS/NZS 5532:2013 and AS/NZS 1891.4:2009

  • Dynamic load tested: 15kN
  • Static load tested: 15kN

INSTALLATION

Installation must be carried out by an accredited Kattsafe Fall Protection Certified Technician, and in accordance with the manufacturer's installation instructions. Can be installed during roof construction or as a retrofit from the top of the roof surface.

MAINTENANCE

Inspection and recertification of fall arrest systems and equipment is required at least every 12 months by competent person in accordance with manufacturer’s specifications and requirements of Australian and New Zealand Standard AS/NZS1891.4:2009 Section 9 (refer to installation manual).

WARRANTY

10 years from the date of purchase subject to correct installation. Use and maintenance to be in accordance with manufacturer's specifications and recommendations.

WARRANTY TERMS AND CONDITIONS

All warranty claims must be made in writing within 14 days of the appearance of the defect.

Incorrect installation or work done by a non accredited Kattsafe system installer will void all warranty rights.

Systems that have been installed using non proprietary equipment will void all warranties.

System roof/cladding and concrete penetration seals are not covered in this warranty.

Systems/components that have not been maintained in accordance with manufacturer’s/legislative requirements will void warranty.

Systems used by incompetent persons or use with non compatible accessories ie. harness gear, lanyards, travellers, fall arrestors etc. will void warranty.

Systems/components used for purposes other than their intended use will void warranty.

General wear and tear is expected and will depend on the frequency of use and is not covered by warranty.
