Rostek Concealable Horizontal Monorail

Concealable monorail system that can be mounted into the building ceiling or soffit in order to access interior and exterior facades.


Specs & Details

  • Key features
  • Technical Information

The Rostek Concealable Monorail is suited to situations where aesthetics are important.

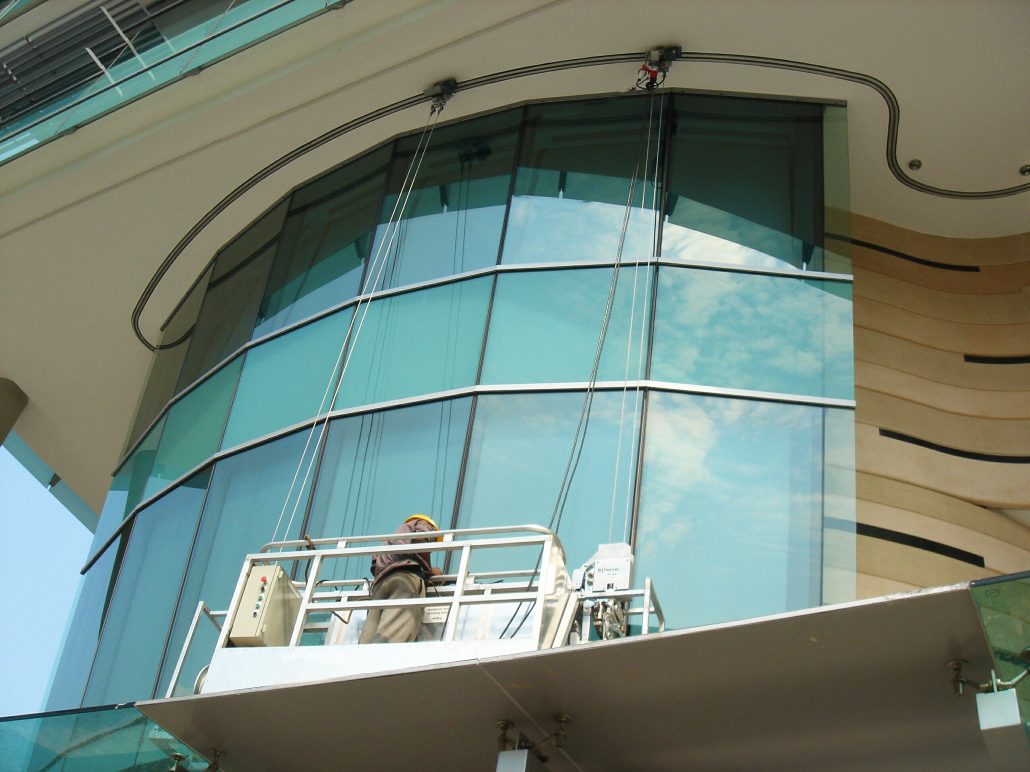

Rostek's Concealable Monorail Access System is an ideal solution when the monorail needs to be concealed into the building. It is possible to mount the monorail into the building ceiling or soffit in order to access the interior and exterior facade or to the parapet of a building to conceal it or to promote the architectural design. The motorized trolley RS110-E is used to support suspended access equipment according to EN1808.


RS110-M is used to support suspended access equipment according to EN1808. The trolley is moved by pulling from the track, pushing from the facade, or moving from the ground level. It is equipped with two suspension holes, one for the suspension wire and one for the safety wire.

RS110 and RS162 concealable tracks are used for Rostek monorail systems. They are designed to support suspended access equipment according to EN1808. It is possible to conceal the track into the ceiling or the soffit of a building. Both of the tracks are fastened to brackets from the top. It is important to note that only Rostek trolleys can be used with the Rostek Concealable tracks.


Rostek Concealable Monorail Systems are designed to carry suspended access equipment according to EN1808.




Installation must be carried out by Rostek certified installation companies and in accordance with all manufacturer requirements.


As per As/NZS 1891.4 the Rostek Concealable Monorail must be certified every 12 months by an Accredited Rostek Certification technician. All of the exposed materials in the system have been specified as naturally corrosion-resistant, or have been coated with sacrificial coatings to prevent oxidization of the base material. It is important to consider that in some environments the system may need to be cleaned to gain the best possible life expectancy from the materials.


Rostk grants a warranty for 12 months from the date of purchase of the device. The warranty covers; defects in material, defects in workmanship, anti-corrosion coatings defects.
