Rostek Horizontal Monorail

Designed to provide suspended access for cleaning and maintenance.

Home /
Spec & Details
Projects
Resources
PBI_Logo_Asset_45_x_75_px-1

Specs & Details

  • Key features
  • Technical Information

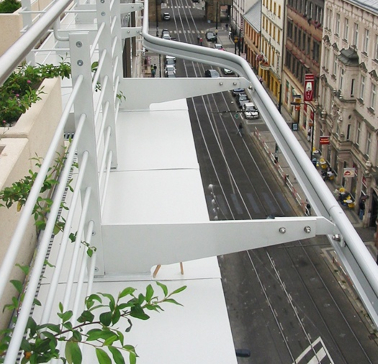

Rostek Horizontal Monorails provide either abseil or suspended stage access to the external facade or internal atrium.

HOW IT IS USED

The Rostek Horizontal Monorail provides a continuous anchorage point for suspended access. It can be used for abseil or can carry a suspended stage. Manual, rope-driven, or electric trollies are available to move along the rail.

HOW IT WORKS

Three different rail profiles are available. 2 top fixed and 1 side fixed. The RS111 has a typical bracket spacing of 2.0m - 2.5m. The RS133 has a typical bracket spacing of 2.7m - 3.6m. The RS163 has a typical bracket spacing of 3.5m - 4.5m. The minimum bending radius of each rail is 500mm. Every single trolley has a maximum load of 500kg.

PERFORMANCE

Conforms to AS/NZS 1891.2.2001 - Industrial Fall-arrest systems and devices - Horizontal lifeline and rail systems, AS/NZS 1891.4.2009 - Industrial Fall-arrest systems and devices - Selection, use, and maintenance, AS/NZS 4488.2:1997 - Industrial Rope Access Systems - selection use and maintenance EN1808:2015.







INSTALLATION

Installation must be carried out by Rostek certified installation companies and in accordance with all manufacturer requirements.

MAINTENANCE

As per AS/NZS 1891.4 the Rostek Horizontal Monorail and associated equipment must be certified every 12 months by an Accredited Rostek Certification technician. All of the exposed materials in the system have been specified as naturally corrosion-resistant, or have been coated with sacrificial coatings to prevent oxidization of the base material. It is important to consider that in some environments the system may need to be cleaned to gain the best possible life expectancy from the materials.

WARRANTY

Rostek grants a warranty for 12-months from the date of purchase. The warranty covers; defects in material, defects in workmanship, antio-corrosion coating defects.
