Previously PBI Height Safety

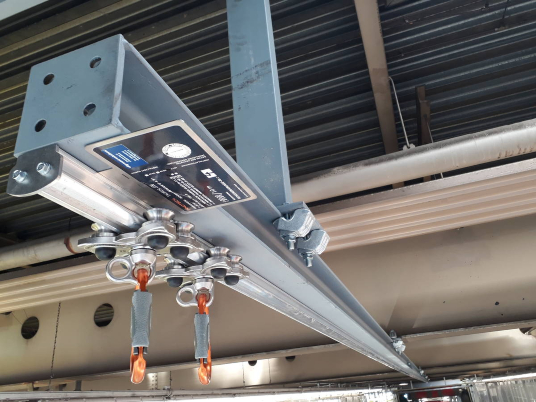

Innotech Taurus Structurally Mounted Universal Rail System

Flexible fall arrest and abseil rail system designed for all substructures. Provides continuous connection in vertical and horizontal situations. Can be bent around corners and over ladders.


Specs & Details

  • Key features
  • Technical Information

Compatible with most ladder types and substructures, the rail system can be fixed up, along, and down various levels on a structure allowing the user to constantly remain connected. Maneuverable rail connections and end seals can be very simply installed, and easily curve and bend. Elements adapt themselves perfectly to the actual constructional conditions.


The Taurus rail system provides fall protection on both horizontal and vertical planes. Perfect for ladder access. It also provides abseil capabilities.


The Taurus rail is fixed to the ladder or structure for continuous hands-free operation. For vertical systems on ladders, a specific shuttle is used to lock off in the event of a fall.


Conforms to AS/NZS 1891.2:2001 - Industrial fall-arrest systems and devices - Horizontal lifeline and rail systems, AS/NZS 1891.4:2009 - Industrial fall-arrest systems and devices - Selection, use and maintenance, AS/NZS 4488.2:1997 Industrial Rope Acess Systems - selection use and maintenance. designed for and tested on most roof types, has been designed to withstand a 15kN load.



Installation must be carried out by an Accredited Innotech trained Technician and in accordance with the manufacturer's installation instructions. The rail can be mounted above, on the wall, or below the users. It can also be mounted on raised posts (maximum of 3m apart) or directly into steel structures, concrete, or onto ladders.


As per AS/NZS 1891.4 Innotech Taurus Rail must be certified every 12 months by a qualified height safety equipment inspector. All of the exposed materials in the system have been specified as naturally corrosion-resistant, or have been coated with sacrificial coatings to prevent oxidization of the base material. It is important to consider that in some environments the system may need to be cleaned to gain the best possible life expectancy from the materials.


Under normal use conditions there is a two year warranty on all components against manufacturing defects. However, if the restraint system is used in particularly corrosive atmospheres, this period may be shortened. If there is strain, (a fall, weight of snow, etc) the warranty claim is voild for those components that have been designed to absorb energy, or that may possibly be deformed and therefore must be replaced. Attention for system installation and components planned and installed under the responsibility of specialised installation companies, INNOTECH assumes neither responsibility nor warranty in the case of improper installation.
